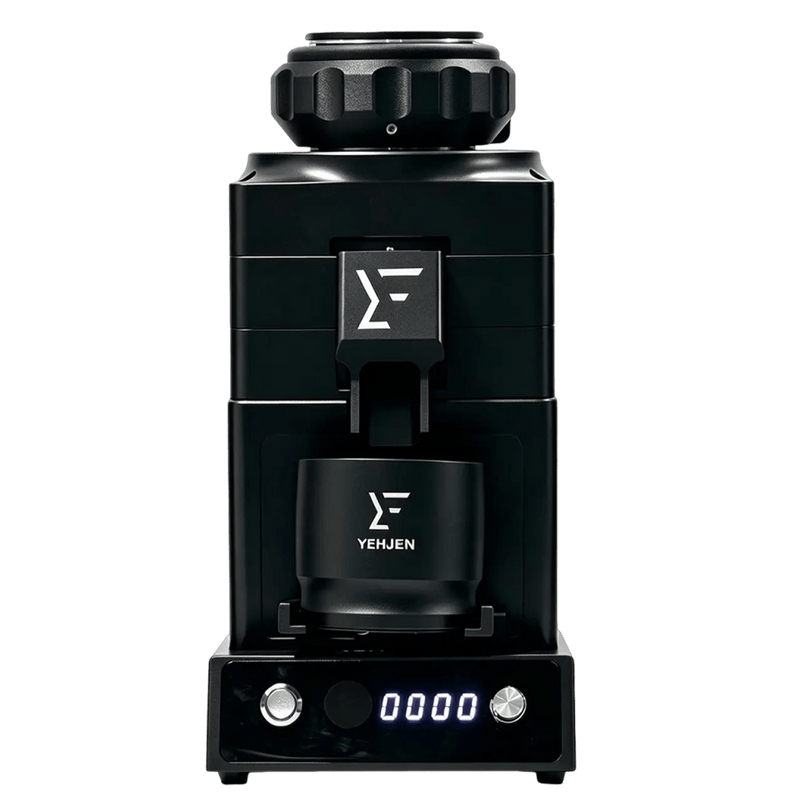

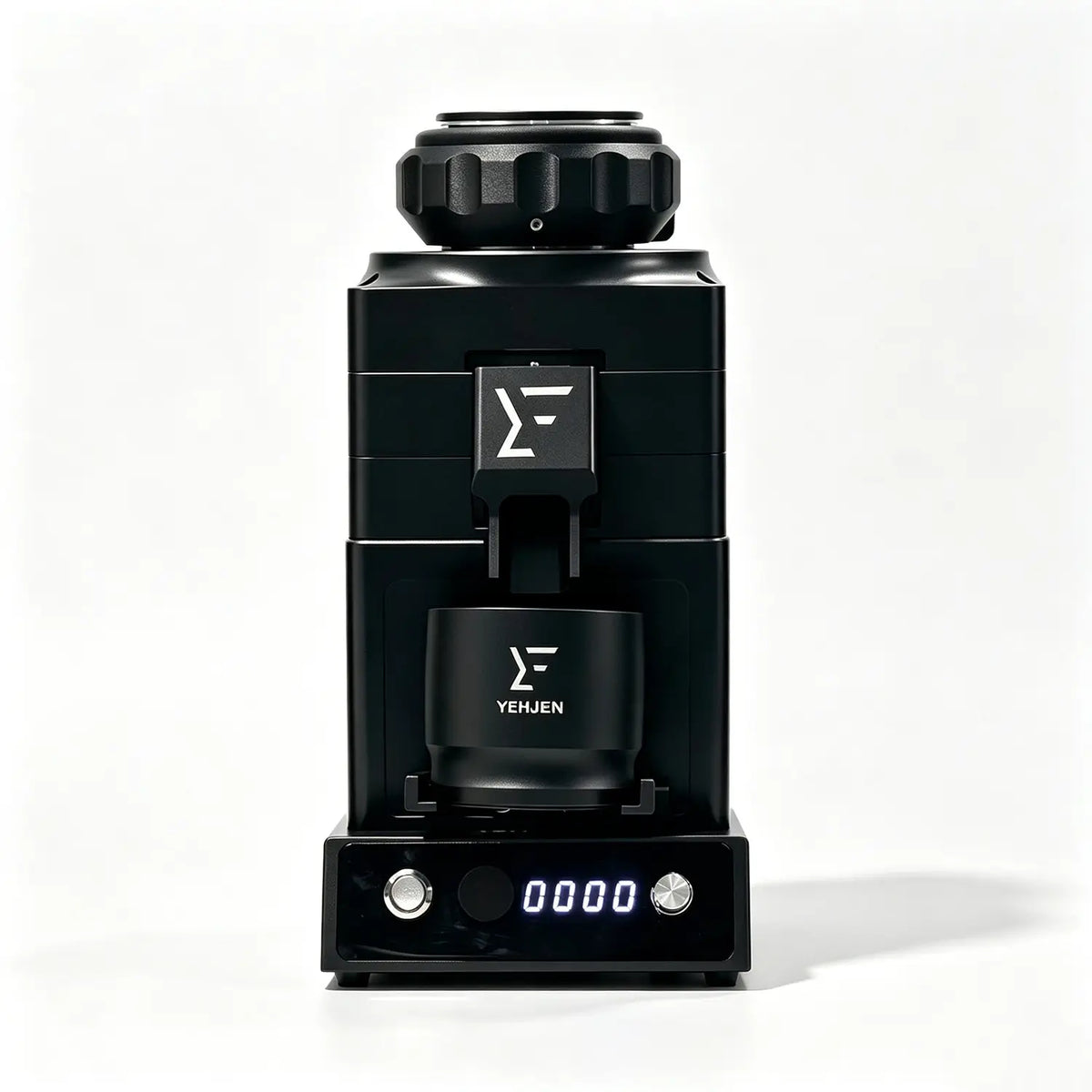

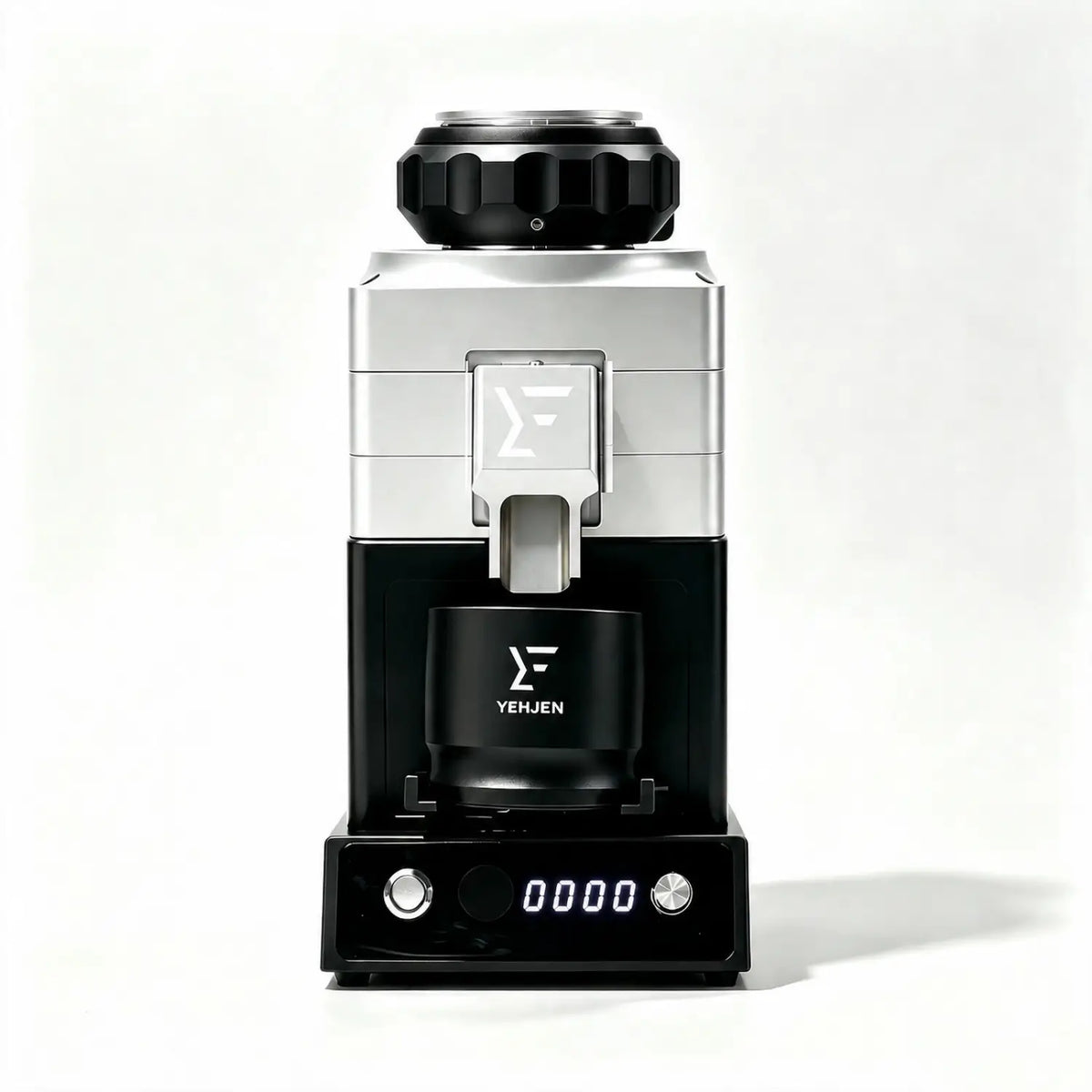

The YEH-80L is a serious single-dose platform for home baristas who want to explore both espresso and filter coffee without committing to one fixed burr profile. Its 80mm flat-burr format, 1500W brushless FOC motor and adjustable 300–2000 RPM range give you useful control over workflow, while the compact coffee path is designed for low retention between doses.
Why You'll Love It
- 80mm flat-burr platform: A flexible starting point for drinkers who value separation, clean finish and the ability to tailor the grinder around their brewing preferences.
- Burr flexibility: Supplied with an 80mm magnetic blind burr set and designed to work with compatible 80mm flat burr options. Confirm fit and mounting requirements before installing third-party burrs.
- Variable-speed control: Adjust from 300 to 2000 RPM to explore how speed, coffee density and burr geometry affect your workflow.

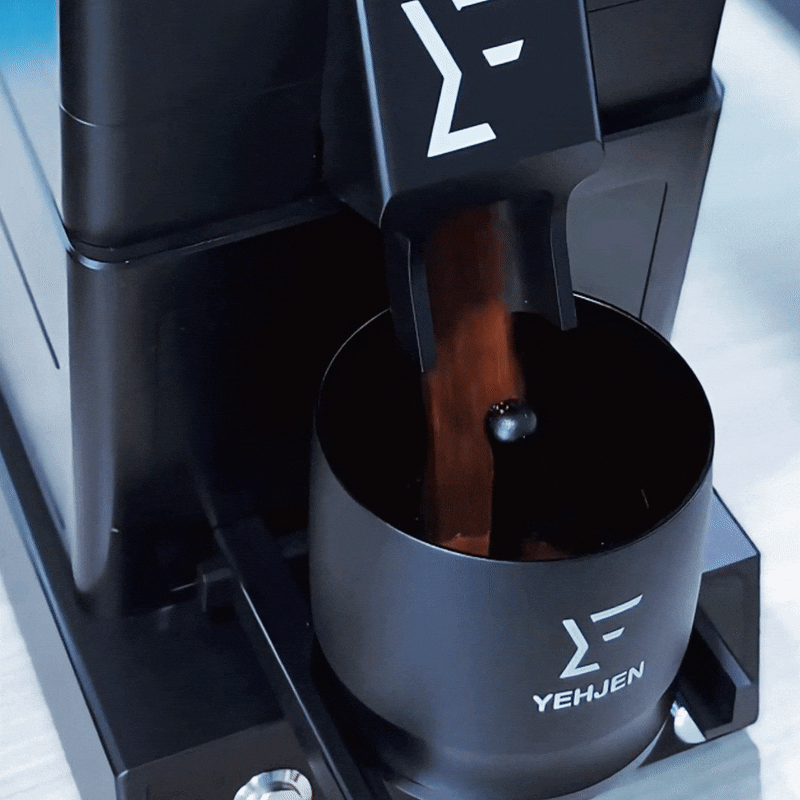

- Single-dose workflow: A short grounds path is specified for retention of 0.1g or less under intended operating conditions.

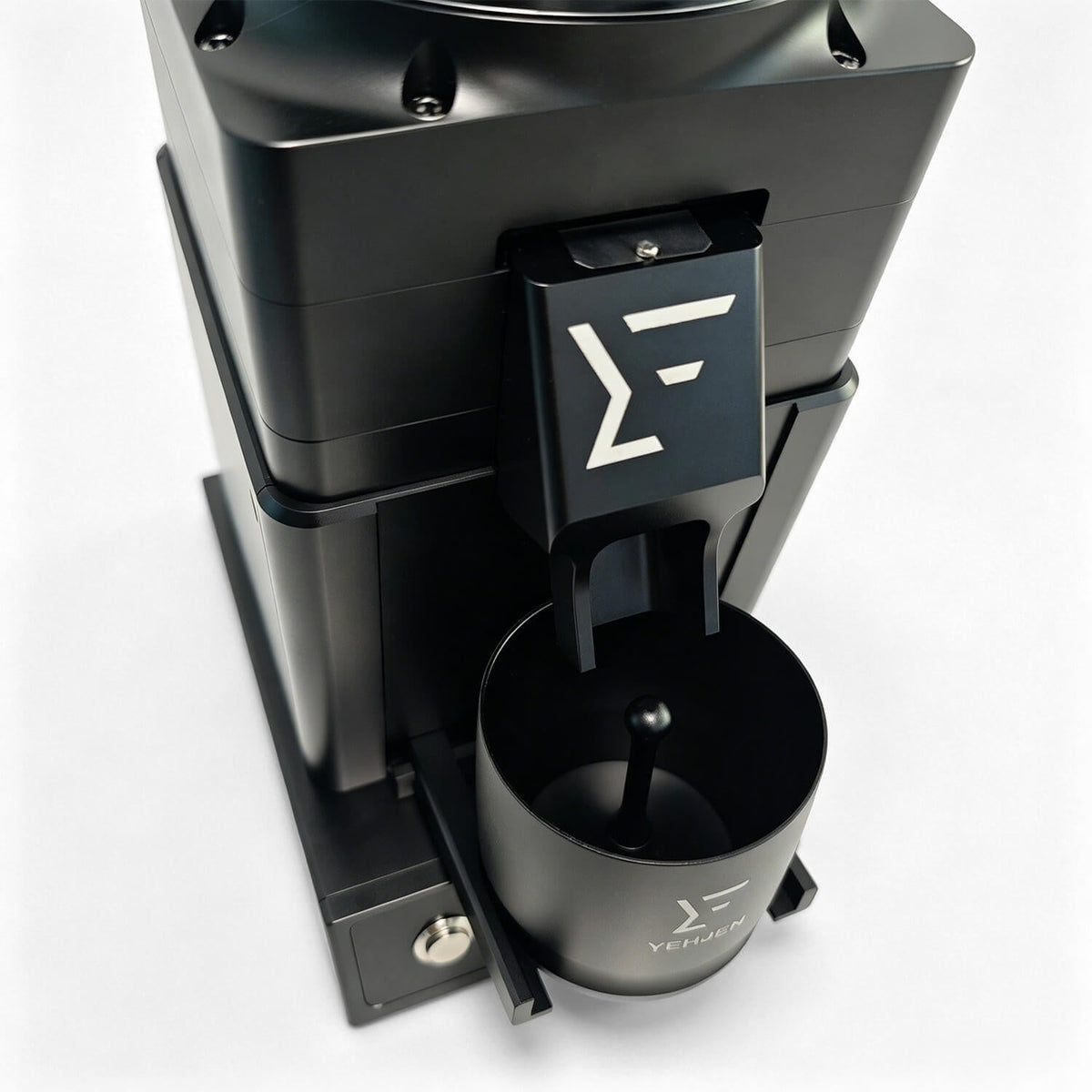

- Built for adjustment: The stepless grind dial lets you move between espresso and filter settings with close control.
- Serviceable construction: Aluminum-alloy body construction and a SUS304 stainless steel burr carrier create a stable platform for regular cleaning and burr changes.
- 1 × YEH-80L Coffee Grinder Body
- 1 × Powder Chute / Spout
- 1 × Press-to-blow Bean Hopper
- 1 × Powder Collection Cup
- 1 × Power Cable (220V, 50/60Hz, 10A)
- 1 × Cleaning Brush
- 1 × Allen Key Set (Hex Wrench Set)
Precision Engineering
Machined to 0.01mm Consistent every dose
- 0.01–0.02mm grinding accuracy
- Angular contact bearing spindle with micron-level runout
- Unibody aluminum construction — no tolerance accumulation
Precision Adjustment
Micron-Level Precision Adjustment
Whether you need a microscopically tight range for light-roast espresso or a crisp profile for pour-over, this built-in-house mechanism delivers absolute alignment—ensuring a consistent dose and flawless particle distribution every single time.
Compatible Burrs

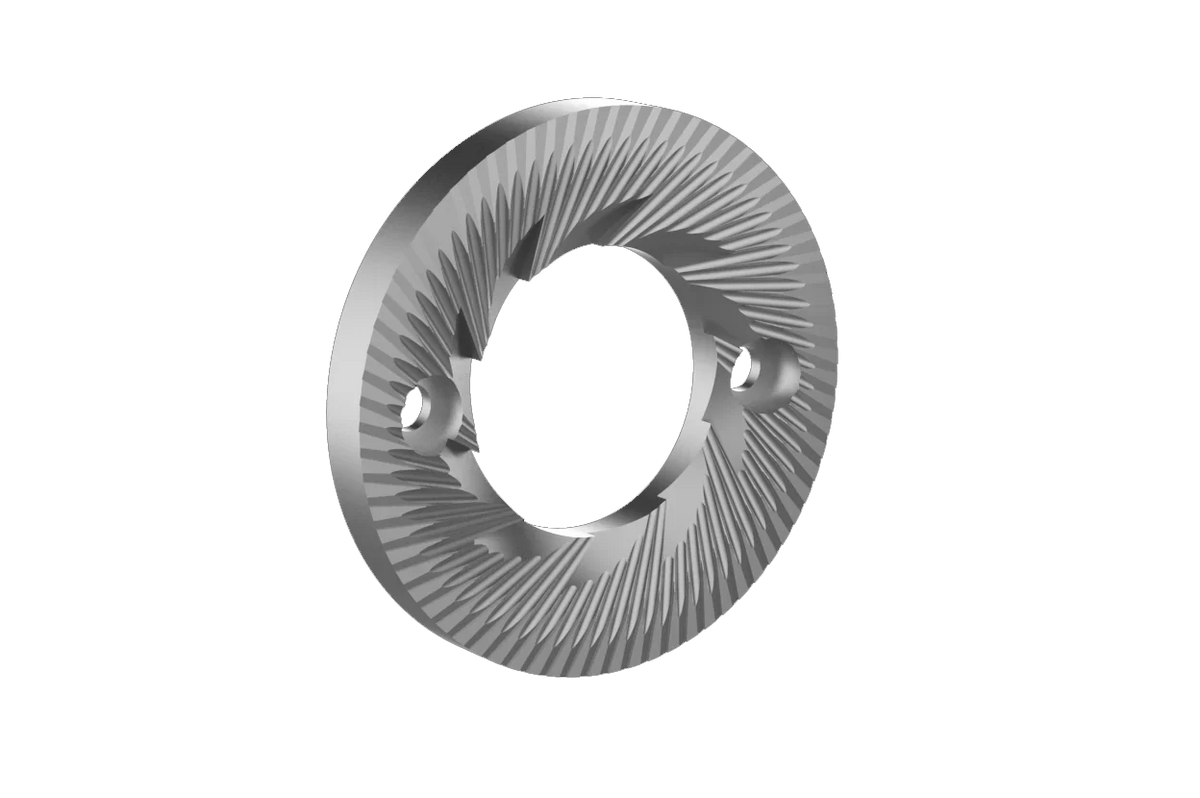

80mm Blind Burrs
- Standard configuration: 80mm universal magnetic blind burr set.
- Compatible with selected 80mm blind and through-hole flat burrs. Confirm fit before installing third-party burrs.
Why Choose an 80mm Flat Burr Grinder?
An 80mm flat burr grinder offers a large-burr platform for users who want more flexibility in burr geometry without immediately moving to a 98mm or 120mm grinder. The YEH-80L supports compatible 80mm blind and through-hole burr designs for espresso, filter, and pour-over grinding.
Combined with a low-retention single-dose workflow, precision adjustment, and a rigid spindle system, the YEH-80L is designed for coffee enthusiasts who want greater control over grind settings, burr selection, and brewing style.
Compare it with the YEH-98L 98mm flat burr grinder, browse all coffee grinders, or read our 80mm vs 98mm burr grinder guide.
Detail
| Coffee Grinder Burrs | 80mm |
| Grinding Accuracy | 0.01~0.02mm |
| Color | Black |
| Grinding Residue | ≤0.1g |
| Power Supply | 220V, 50/60Hz |
| Bean Capacity | 25-35g |
| Size | 210x130x330mm |
| Weight | 12.5kg |
| Materials | Super hard aerospace aluminum 7075 + SUS304 stainless steel + national standard AL6061 |
What grind settings should I start with?
For espresso with the stock burr, start at dial position 3 and a motor speed of 1000–1500 RPM. For pour over, try 10–11.5 at 200–700 RPM. Light roasts need finer settings; dark roasts need coarser. On first power-on, set the dial to position 30 (not 0) to avoid burr contact.
How often should I clean the grinder?
A full deep clean is recommended every 15 days. Unplug first, detach the powder spout and hopper, unscrew the 4 top bolts with the included hex key, and lift the upper section to expose the burrs. Clean with the included brush or a small vacuum. Wipe mating surfaces before reassembling.
Will my grind setting change after cleaning or a burr swap?
No. The patented internal leveling mechanism and independent spindle are designed so that disassembly for cleaning or burr replacement does not affect grind calibration. Your dial position stays accurate after reassembly.
Is the YEH-80L compatible with 110V / 120V power?
The YEH-80L is rated for 220V / 50–60Hz. North American customers will need a suitable step-up voltage transformer. Please verify your local power requirements before ordering.
Precautions for Scale Adjustment
This machine is manufactured with the 0 mark set as the tool setting position. Do not tighten the scale beyond 0 before turning on the machine, as this may cause wear on the tool disc and affect accuracy.
When adjusting the scale, it is recommended to first set the speed to the lowest setting while the machine is powered on, and then make fine adjustments to the scale. Scale adjustments should follow the principle of "from large to small". For example, if the target scale is 3, you can first back down to 4, and then slowly back down to 3 to obtain a more stable and accurate positioning.
Safety Warning
The equipment has undergone precision testing and blade leveling before leaving the factory. Do not loosen the leveling screws yourself. If disassembly or adjustment is required, please contact after-sales personnel first.
Before disassembling any equipment part, the power must be turned off. It is strictly forbidden to disassemble any equipment part while the machine is powered on, especially critical components such as the bean inlet and powder outlet.
Do not grind anything other than coffee beans. Do not insert fingers or foreign objects into the grinding or powder outlet areas while the equipment is running.
If abnormal noise, odor, or overheating occurs, immediately stop the machine, disconnect the power, and contact after-sales service.
